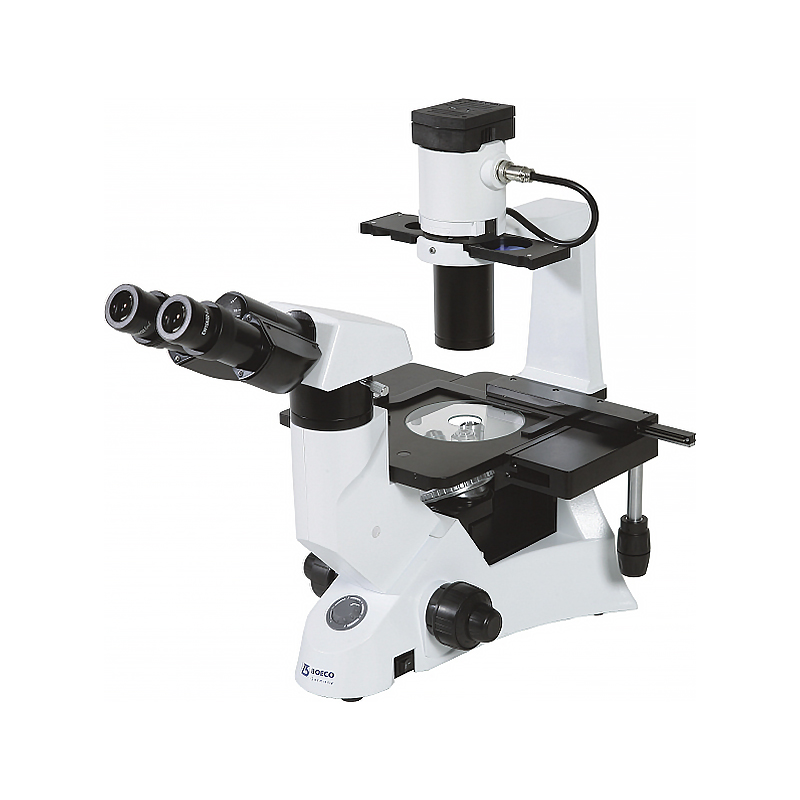

Invertni biološki mikroskop BIB-100

Tehnička specifikacija:
OpticalSystem: Infinity corrected system, field diameter 22 mm
Viewing Head: Bino- or Trinocular Head, 30° 360° rotatable, Interpupillary Distance 48 – 75 mm
Nosepiece: Quintuple revolving nosepiece
Eyepiece: High-point, Extra Wide FieldEyepiece EW 10X /22 mm
Objectives: LWD Infinity corrected Plan Achromat Objective 4X/0,1WD 28 mm
LWD Infinity corrected Plan Achromat Objective 40X/0,8WD 2.1 mm
Infinity corrected Plan Achromat Phase Objective 10X/0,25WD 10 mm
Infinity corrected Plan Achromat Phase Objective 20X/0,4WD 5.1 mm
Condenser: ELWD condesner NA 0.3. LWD 72 mm (without condenser 150 mm)
Centering: Centering Telescope 30 mm diam. Telescope Phase Annulus 10X -20X Phase Annulus Plate
Stage: PlainStage 160 x 250 mm, Glass Insert AuxilaryStage 70 x 180 mm, Attachable Mechanical Ruler
Focusing: Coaxial coarse and fine adjustment. Vertical objective movement,
Coarses stroke 37.7 mm per rotation,Fine Stroke: 0,2 mm per Rotation
Filter: Diameter 45 mm, blue, green and ground glass
Illumination: 12V 30W Halogen lamp, light intensity adjustable.
Body: Innovative stand structure
Power: Inbuilt power supply 100-240V, 50/60Hz
Weight: Net weight 11,0 / 11,7 kgs
Kat.broj: BOE 5000.900; Model: BIB-100, binokularni, 220 V, 50/60 Hz
Kat.broj: BOE 5000.930; Model: BIB-100/T, trinokularni, 220 V, 50/60 Hz

Za više informacija pogledajte katalog
