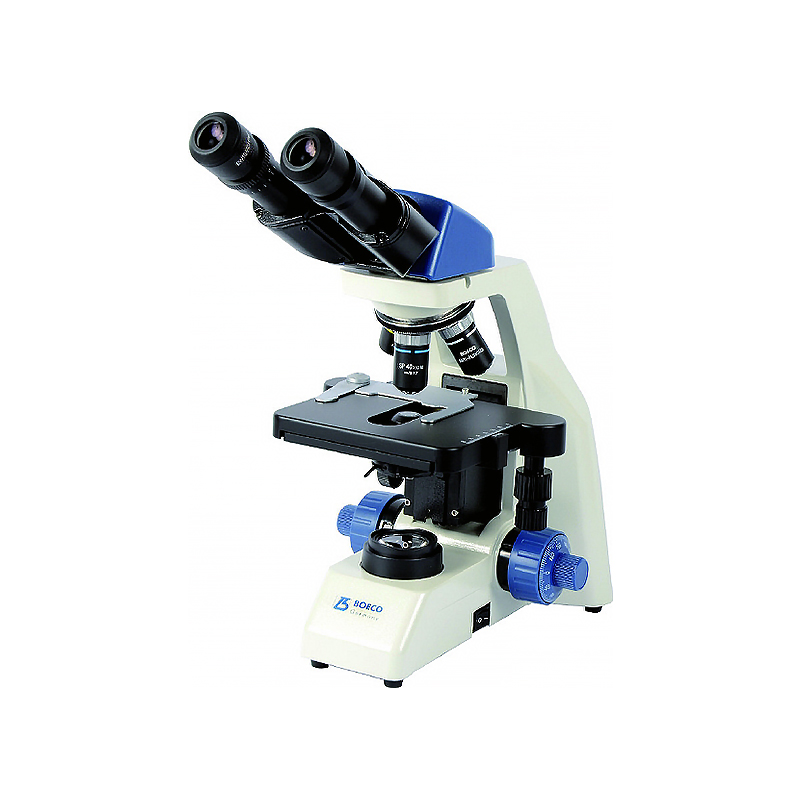

Binokularni mikroskop BM-250/I/SP

Tehnička specifikacija:
Optical Head: Siedentopf Viewing Head, 30° inclined, 360° rotatable, with Infinite corrected optical system. interpupillary Distance 47 – 78 mm, diopter adjustable (left side)
Nosepiece: Backward quadruple revolving nosepiece
Eyepiece: Pair Eyepiece WF 10X /20 mm Wide field
Objectives: BOECO Anti Fungus Infinite Semi-plan Achromat
Objectives F=180 mm: 4x, 10x, 40x (S), 100x (S) (Oil)
Stage: Rackless Double layer mechanical specimen stage. 150 x 139 mm, moving range 75 x 52 mm, Right hand stage handle
Focusing: Low position, coaxial coarse and calibrated fine focus control, with graduation reading 2 microns per division. Total focusing range 25 mm, Safety stop unit.
Condenser: Abbe Bright field condenser, N.A. 1,25, Integrated Iris diaphragm and filter tray. With rack & pinion height adjustment
Illumination: S-LED, brightness adjustable.
Body /power: Sturdy body with supportive rubber and inbuilt power supply, 100-240V, 50/60Hz
Supplied with: Dust cover, green filter, immersion oil, instruction manual
Dimension: 208(W) x 266(D) x 370(H) mm
Weight: Net weight 7,1 / 7,3 kgs
Kat.broj: BOE 2500.200; Model: BM-250/I/SP, binokularni
Kat.broj: BOE 2500.230; Model: BM-250/T/I/SP, terinokularni

Za više informacija pogledajte katalog
